技术参数 Technical Parameter
间距(Pitch):0.6mm 极数(Poles):2-12 额定电压(Voltage ratiing):30V AC/DC 额定电流(Current ratiing):0.3A AC/DC 工作温度(Working temperature):-25°~+85°C 绝缘电阻(Insulation resistance):≧500M 接触电阻(Contact resistance):≦30MΩ
材料 Material
端子:磷青铜 接地片:黄铜 主体:LCP UL94V-0黑色

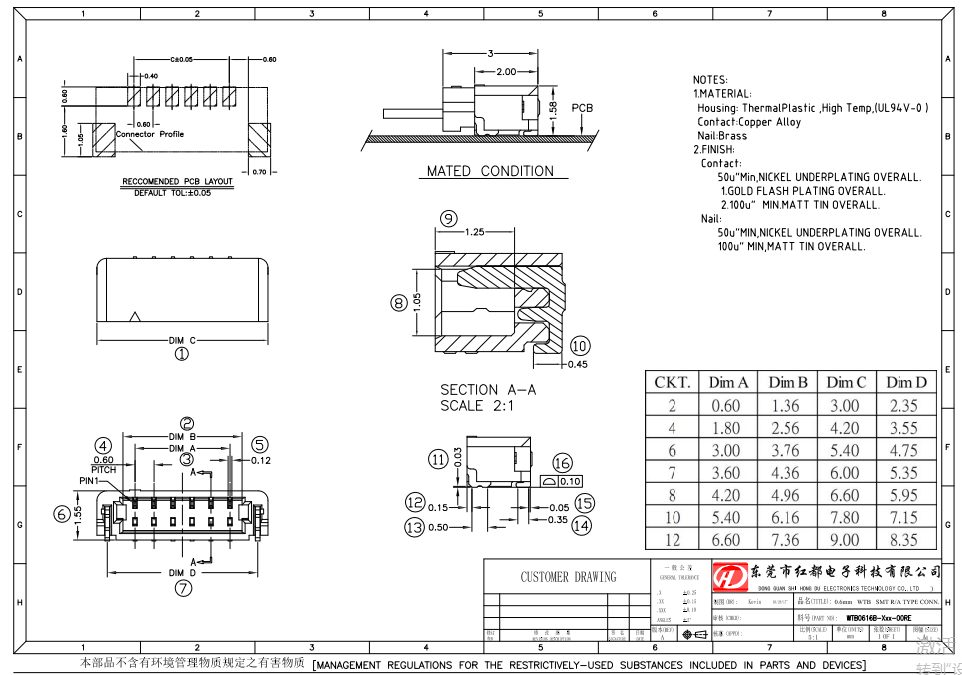

![](/upload/2020-08-22/a1b526bcd2643f8c0ba6391c9f455661.png)
![](/upload/2020-08-22/29003ee7a2126a72781842c07c49da58.jpg)
![](/upload/2020-08-22/e3ee1acc0446da85082da63d0fb8fda7.jpg)
