技术参数 Technical Parameter
技术参数 Technical Parameter 间距(Pitch):1.0mm 极数(Poles):2-16 额定电压(Voltage ratiing):50V AC/DC 额定电流(Current ratiing):0.5A AC/DC 工作温度(Working temperature):-25°~+85°C 绝缘电阻(Insulation resistance):≧500M 接触电阻(Contact resistance):≦30MΩ
材料 Material
端子:磷青铜 接地片:黄铜 主体:LCP UL94V-0本色

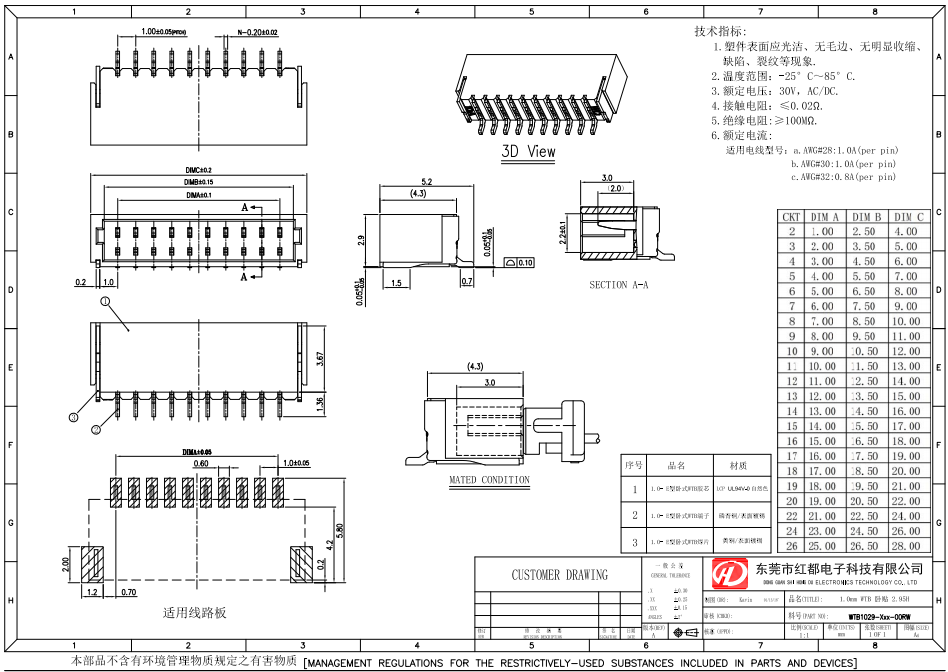

![](/upload/2020-09-01/61d429f8c4dc147ecc19ea5b79e7f84a.png)
